Lot #2131Working

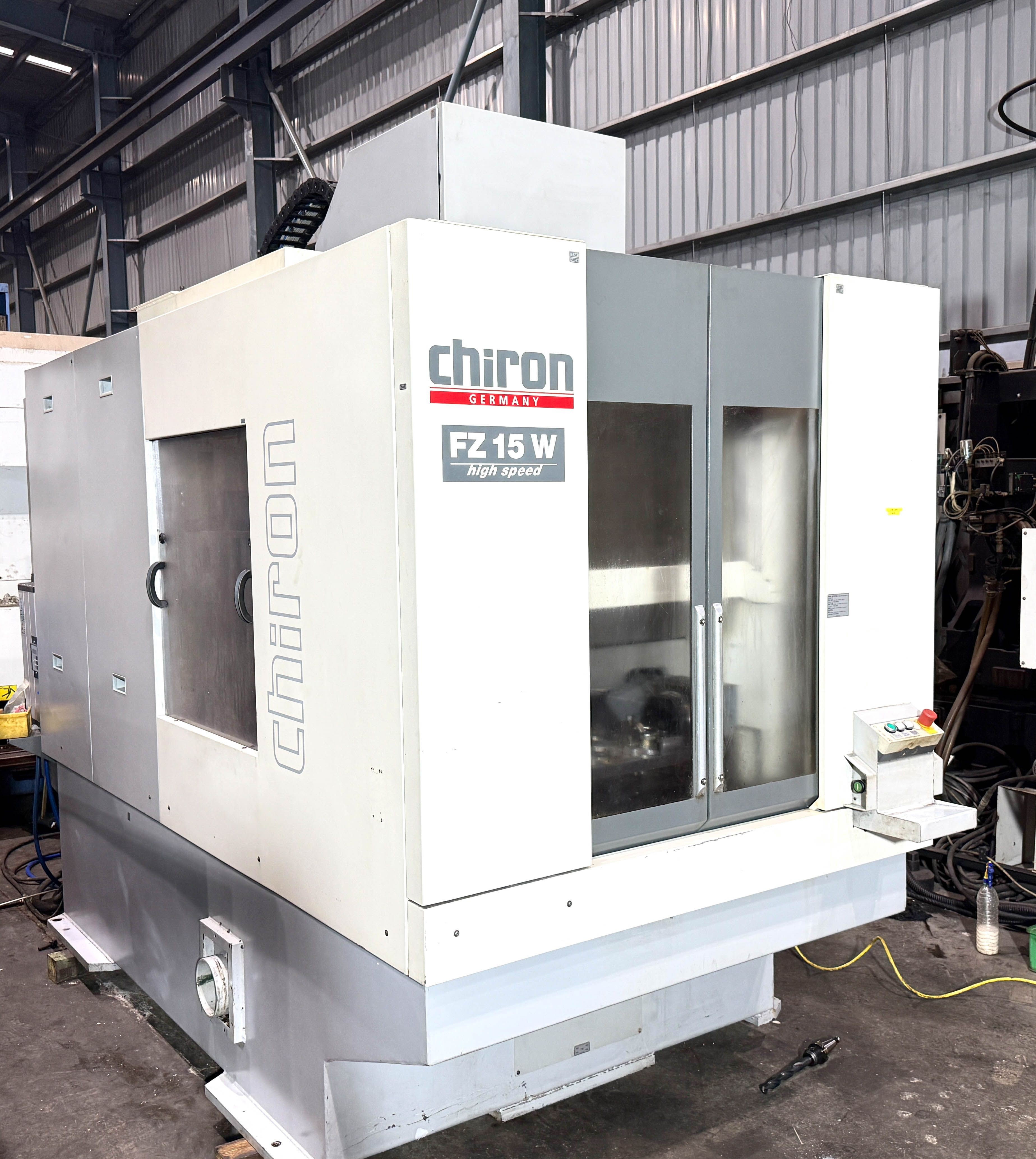

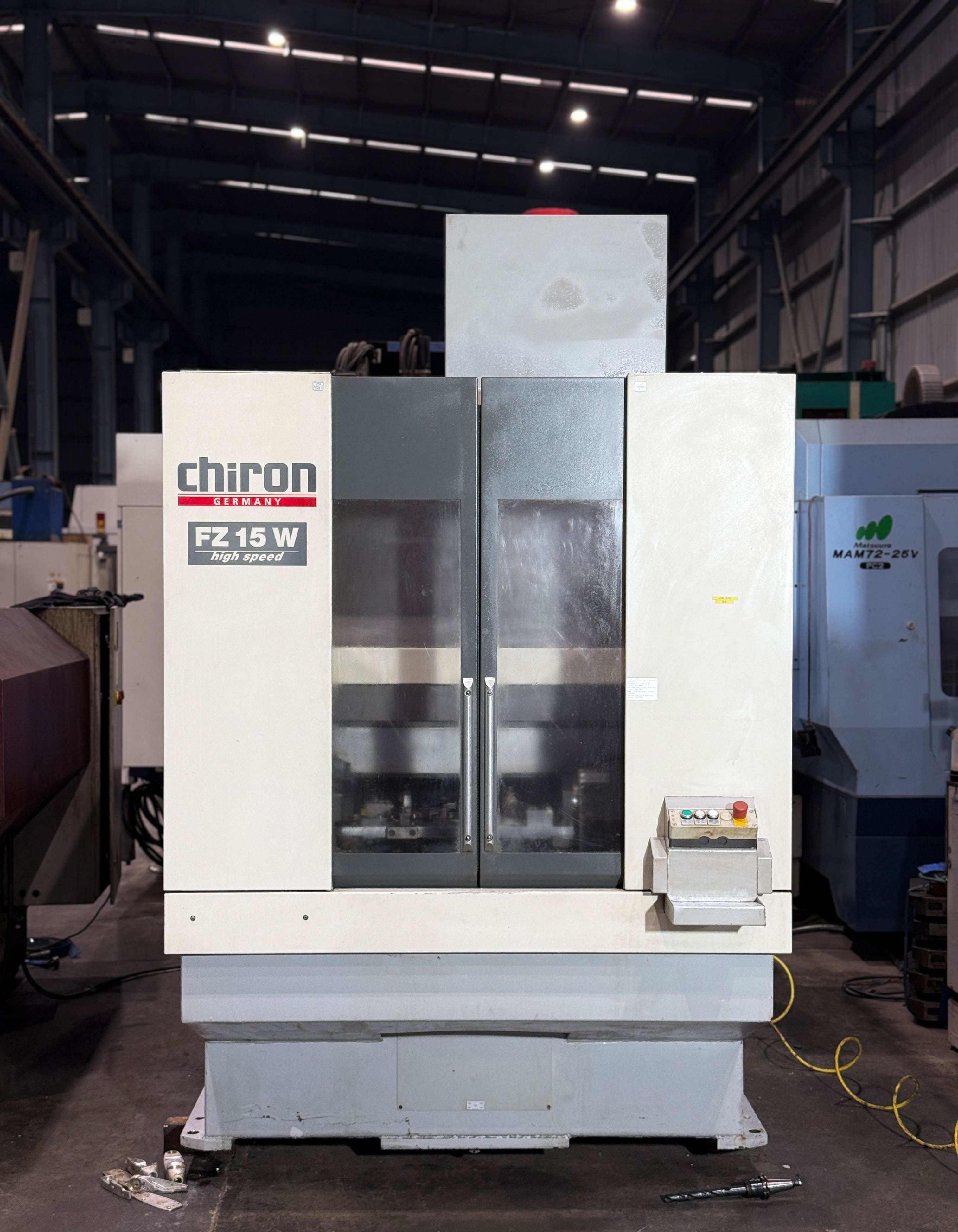

2001 Chiron FZ 15W Double Pallet Vertical Machining Center with Fourth Axis - Used - Nashik, Maharashtra, India

Listed by seller-name

📷 1 / 7

Bid Type:—

Quantity:1

TaxesTo be added at payment

Seller's Terms & Conditions

Core Specifications

The 2001 Chiron FZ 15W is a dual-pallet vertical machining center with fourth-axis capability, designed to enhance the precision and efficiency of machining operations. This model is manufactured by Chiron, with an XYZ travel of 550 x 400 x 425 mm, and features linear motion (LM) guideways. It is equipped with a CAT 40 spindle, with speeds of up to 12,000 RPM, driven by a direct-drive 15 kW spindle motor. The machine includes a 20-tool capacity pallet-type automatic tool changer (ATC), with rapid traverse speeds of 40 m/min. Additional features include a dual-pallet system, fourth axis, cooling system, and chip conveyor to improve productivity. Controlled by a Fanuc 18i-M CNC system, it ensures reliable performance. The machine weighs 7.5 tons and is in used condition, making it ideal for high-demand manufacturing environments requiring versatile machining. Located in Nashik, Maharashtra, India. Specifications:

Machine Type:Dual-pallet vertical machining center (VMC) with fourth axis
Manufacturer:Chiron
Model:FZ 15W
Year of Manufacture:2001
Capacity:550 x 400 x 425 mm
Travel (X/Y/Z):550 x 400 x 425 mm
Guideways:LM
Rapid Speed:40 m/min
Spindle Taper:CAT 40
Spindle Speed:12,000 RPM
Spindle Type:Direct drive
Spindle Motor:15 kW
Control:Fanuc 18i-M

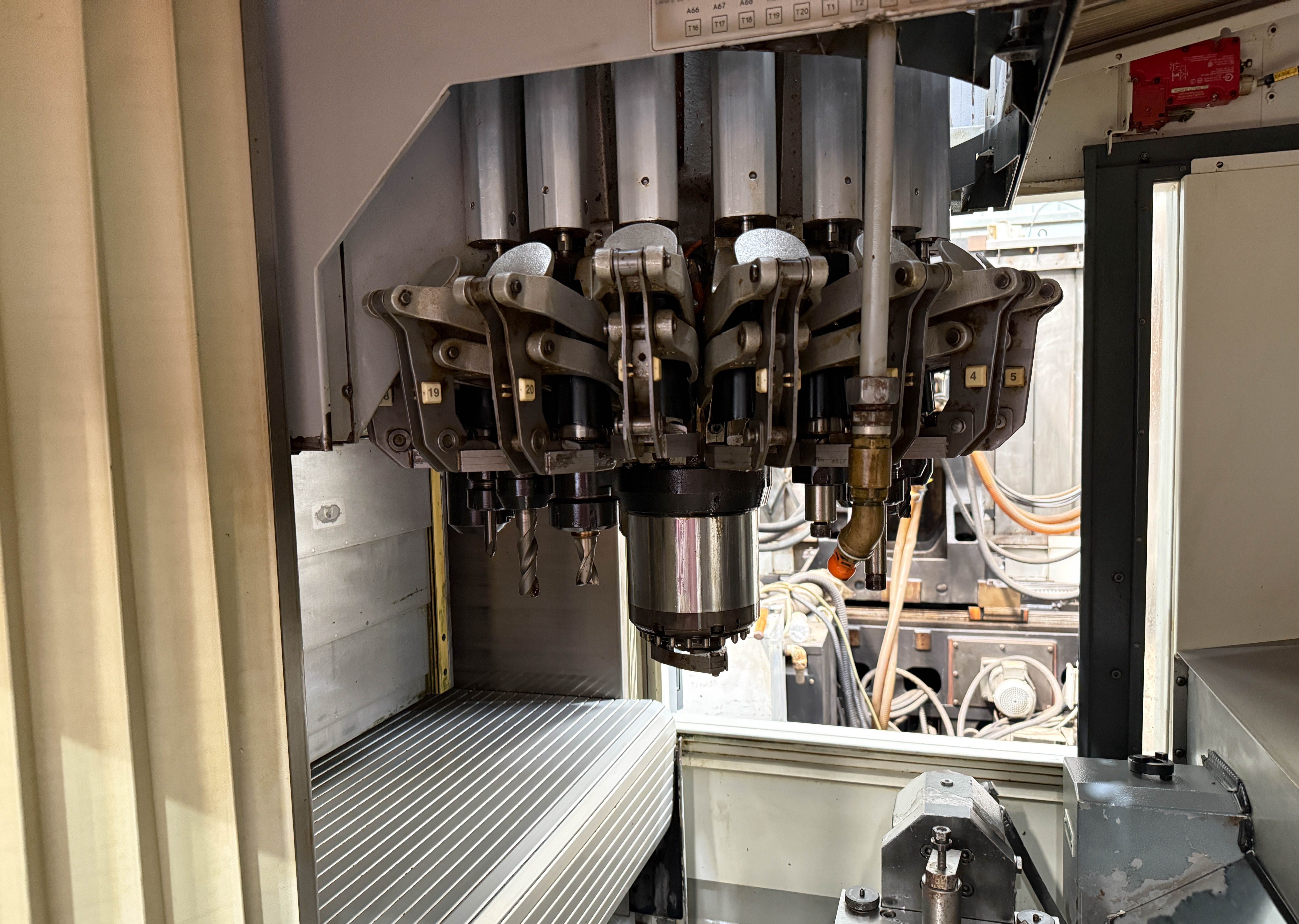

ATC Tool Capacity:20 tools
ATC Type:Pallet type
Other Features:Dual pallet, fourth axis, cooling system, chip conveyor
Weight:7.5 tons
Condition:Used
Location:Nashik, Maharashtra, India

Applications:

Precision milling and drilling
Industrial manufacturing
High-demand machining operations

Condition

Working
