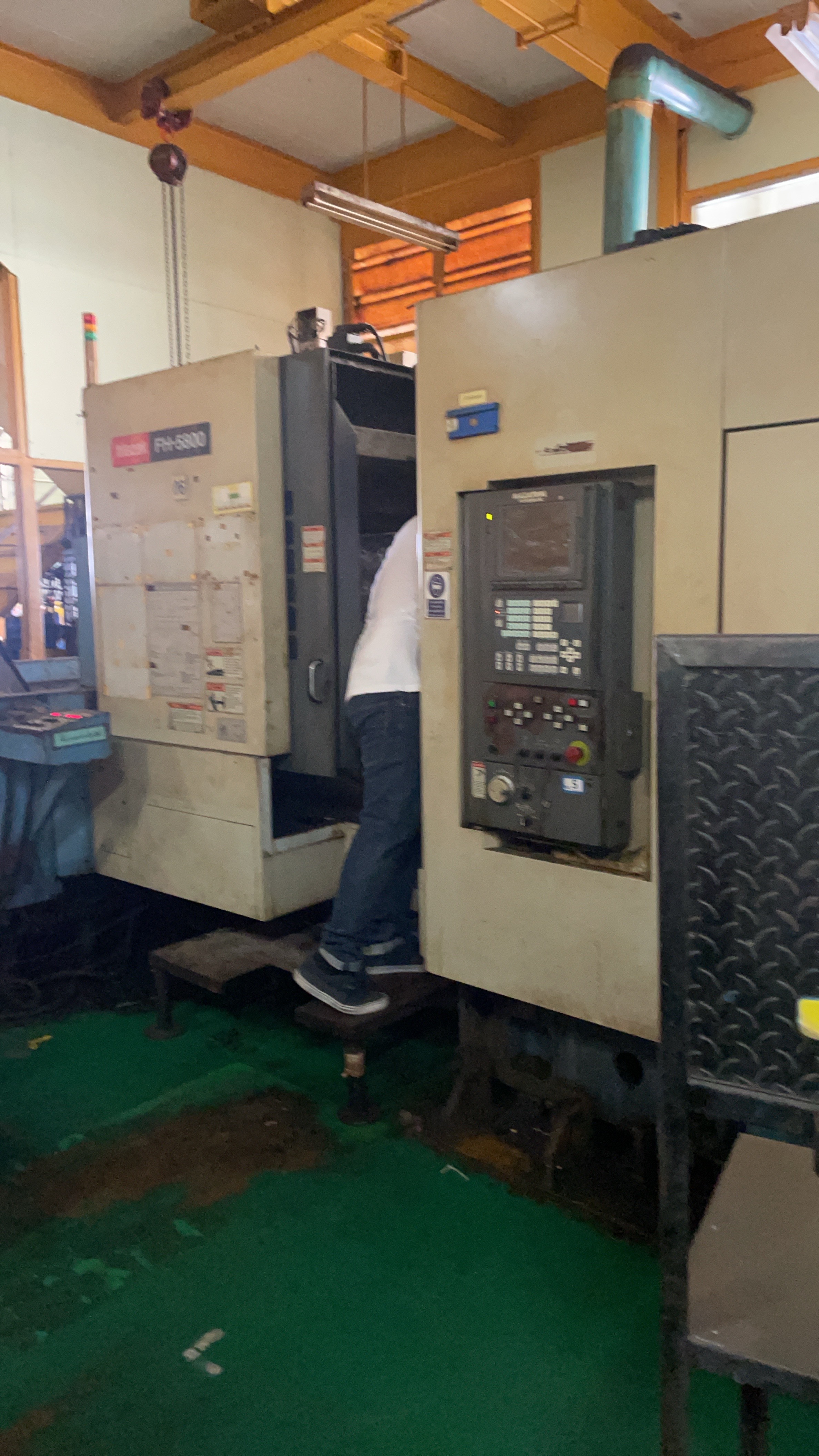

2001 MAZAK FH-5800 is a precision-built horizontal machining center designed for high efficiency and continuous operation in demanding metalworking environments. Manufactured by Yamazaki Mazak Corp., it features a dual pallet setup that allows for simultaneous part loading and machining, significantly enhancing productivity.
This machine is equipped with the MAZATROL 640M CNC controller, supporting advanced program editing and control flexibility. It comes with two 500 × 500 mm pallets, each capable of supporting a maximum weight of 500 kg, making it an ideal choice for machining medium to large parts. The axis travels are 710 mm (X), 610 mm (Y), and 660 mm (Z), paired with a powerful 22 kW spindle motor and a 12,000 RPM ISO 40 taper spindle.
The tool magazine can hold up to 40 tools, streamlining multi-process operations. The system operates on a 3-phase 200V input, with a rated voltage of 54.5 kVA, and the control circuit is AC100V/DC24V.
Specifications
- Model: FH-5800
- Year: 2001
- Control: MAZATROL 640M
- Number of Pallets: 2
- Pallet Size: 500 × 500 mm
- Maximum Part Weight: 500 kg
- Travel (X/Y/Z): 710 / 610 / 660 mm
- Spindle Taper: ISO 40
- Maximum Spindle Speed: 12,000 RPM
- Spindle Motor: 22 kW
- Tool Capacity: 40 tools
- Weight: 14,200 kg
- Power Supply: 54.5 kVA, 3AC 200V
Condition

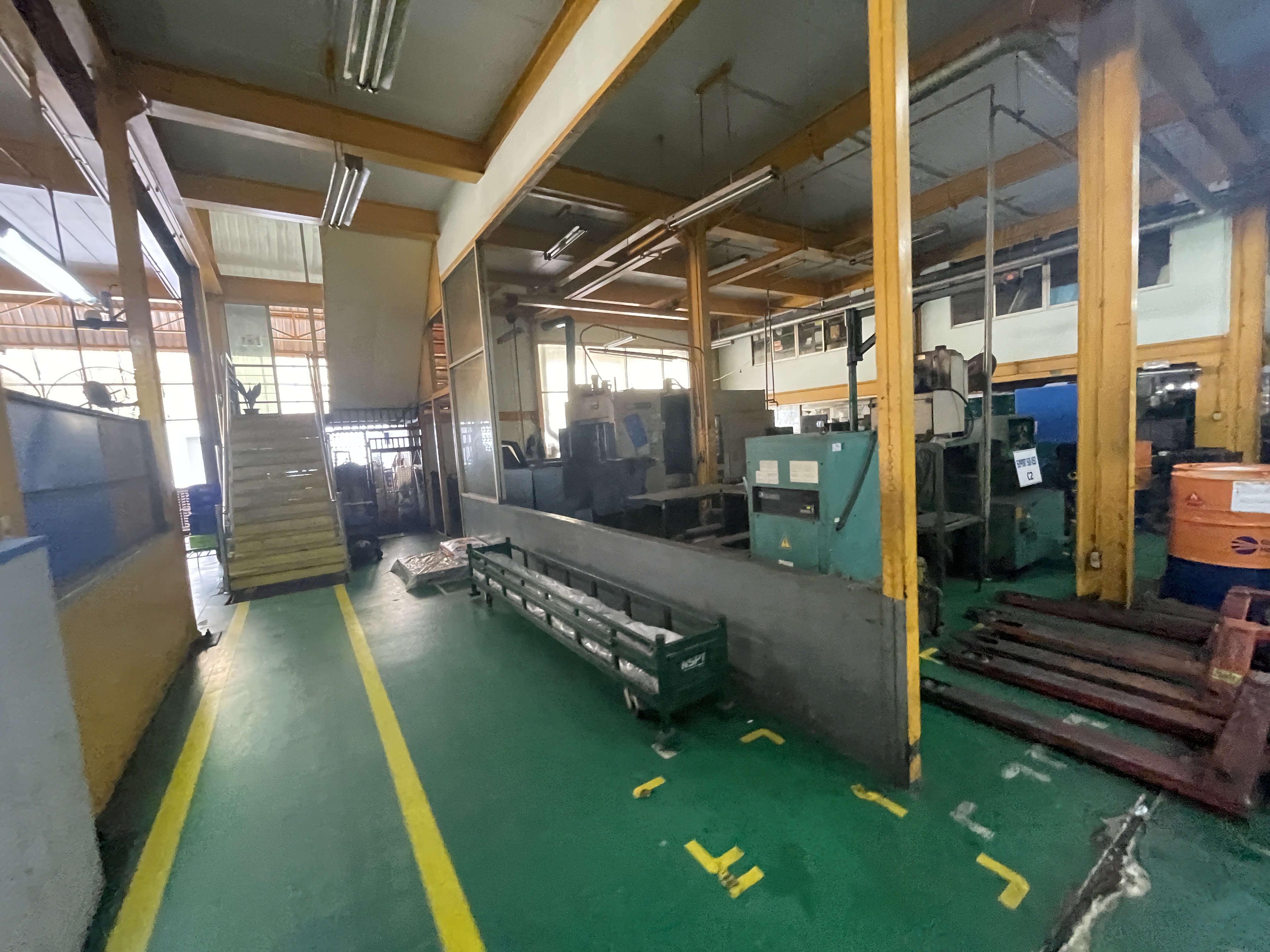

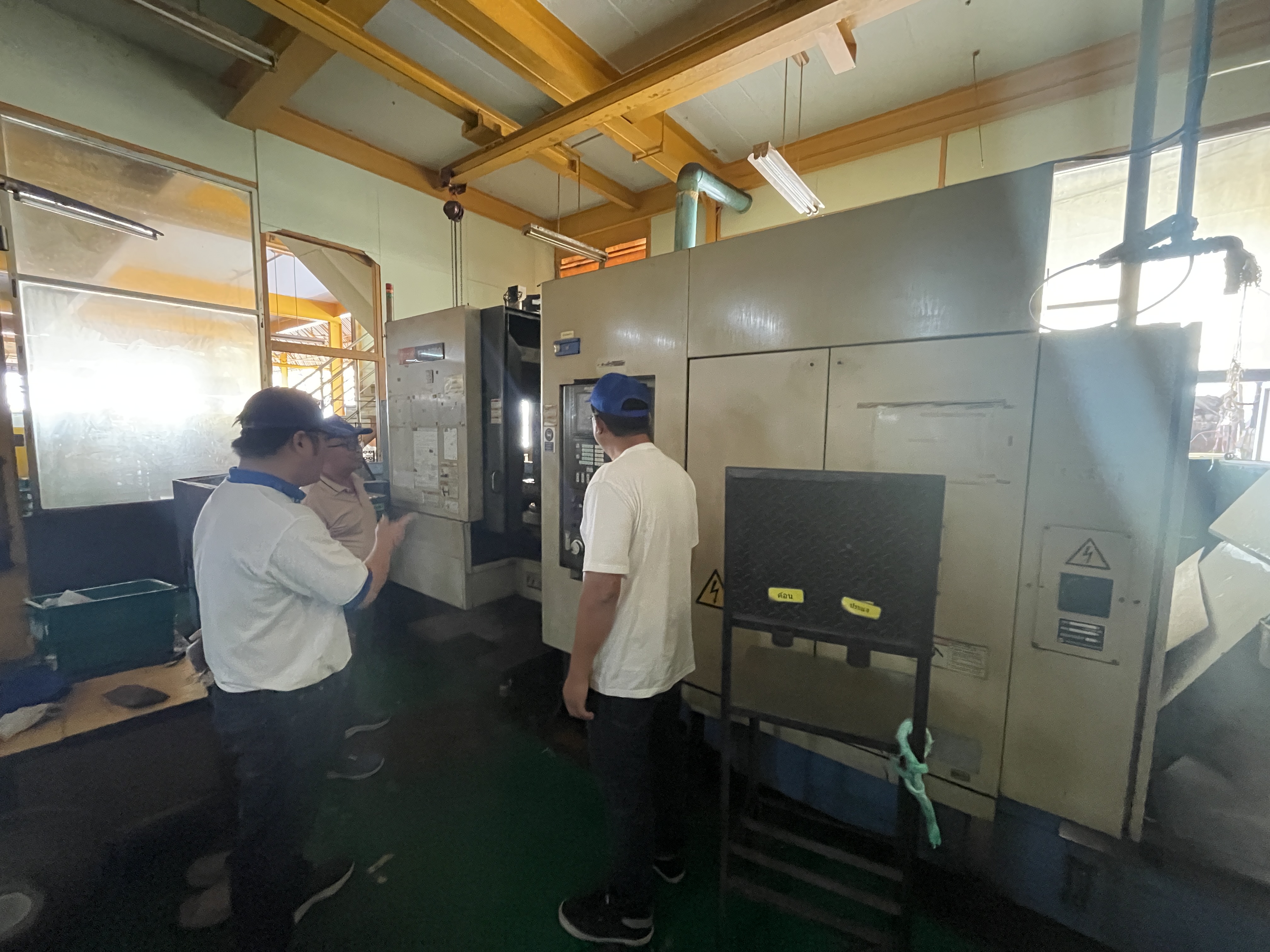

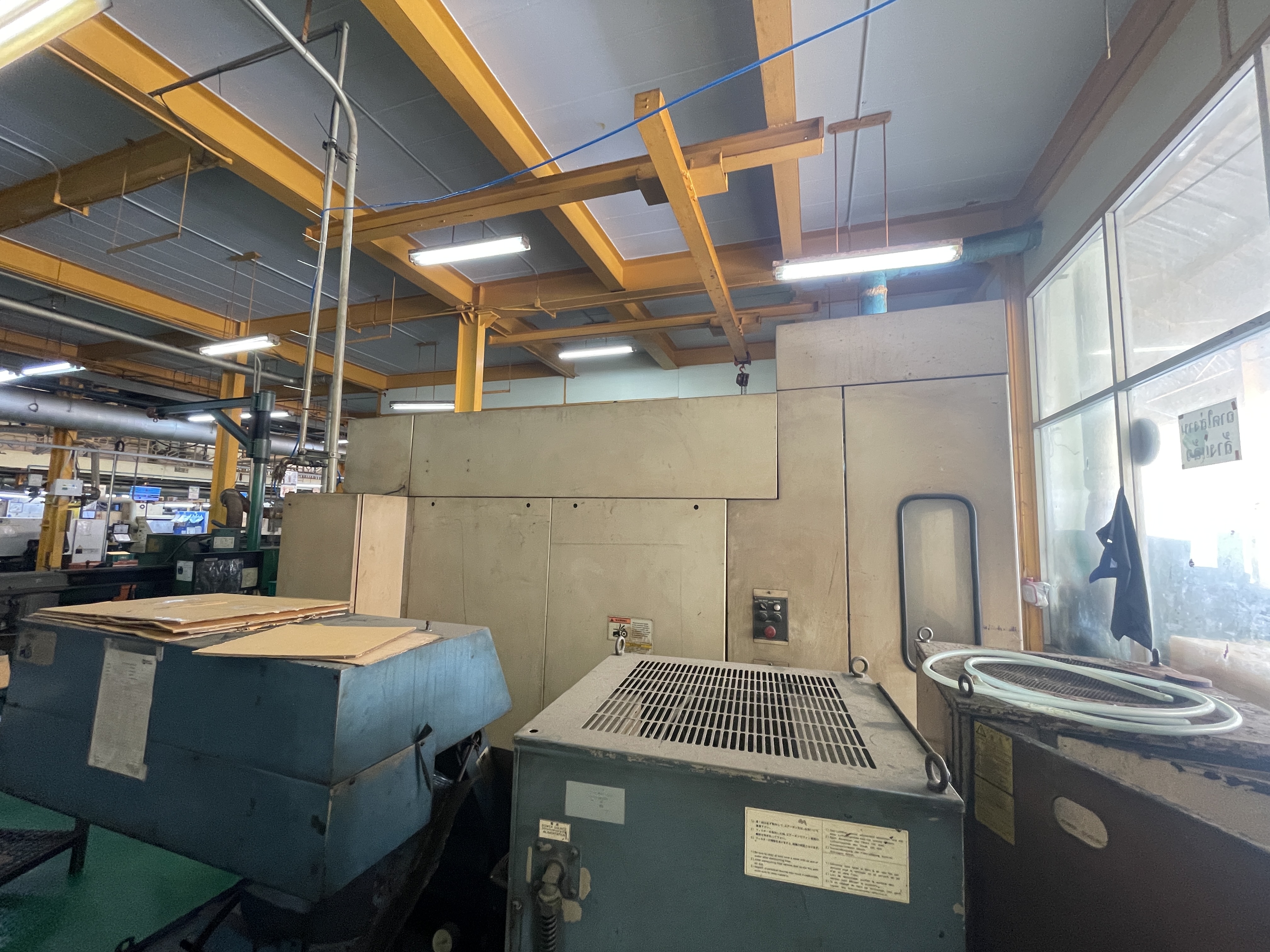

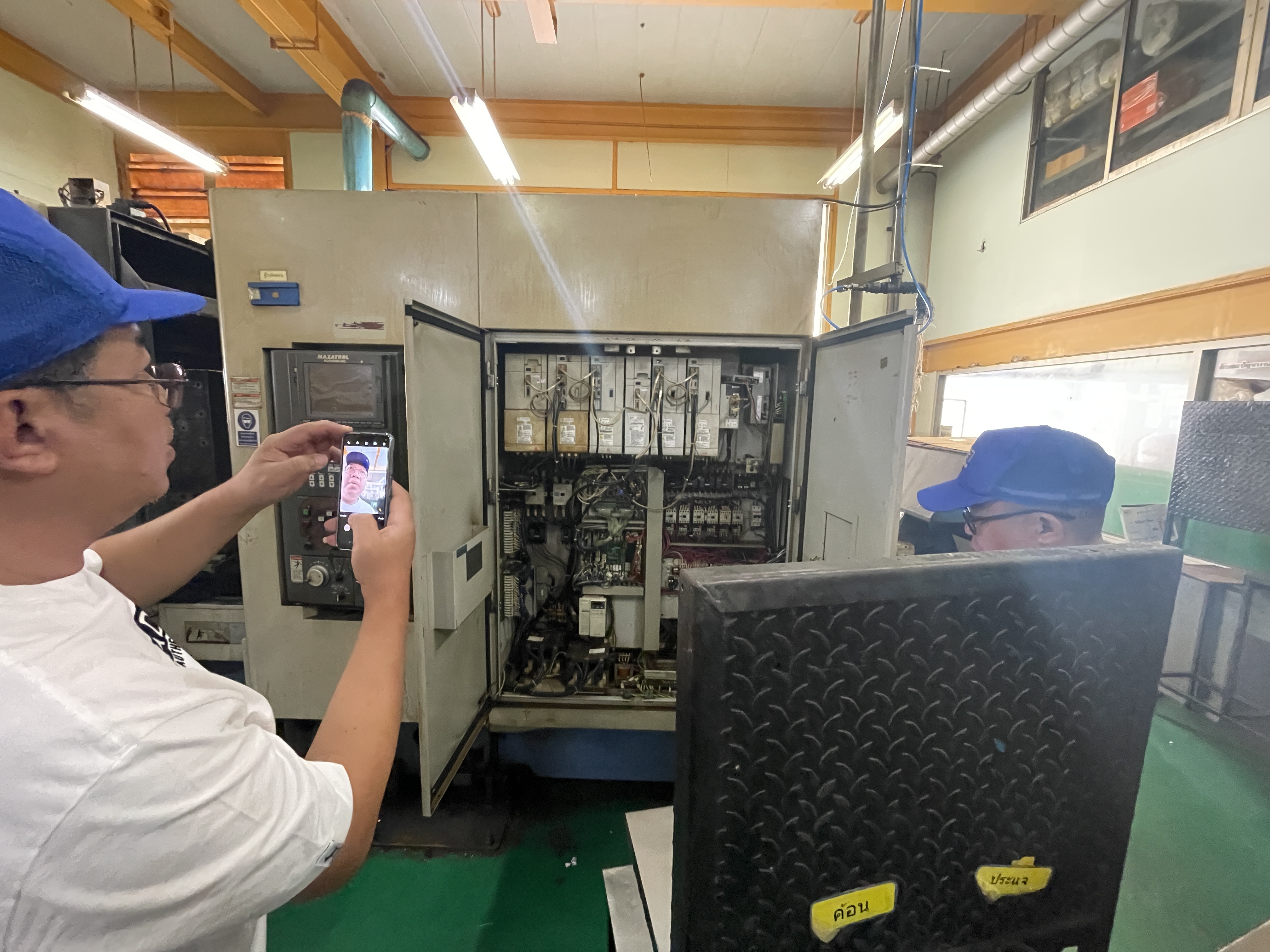

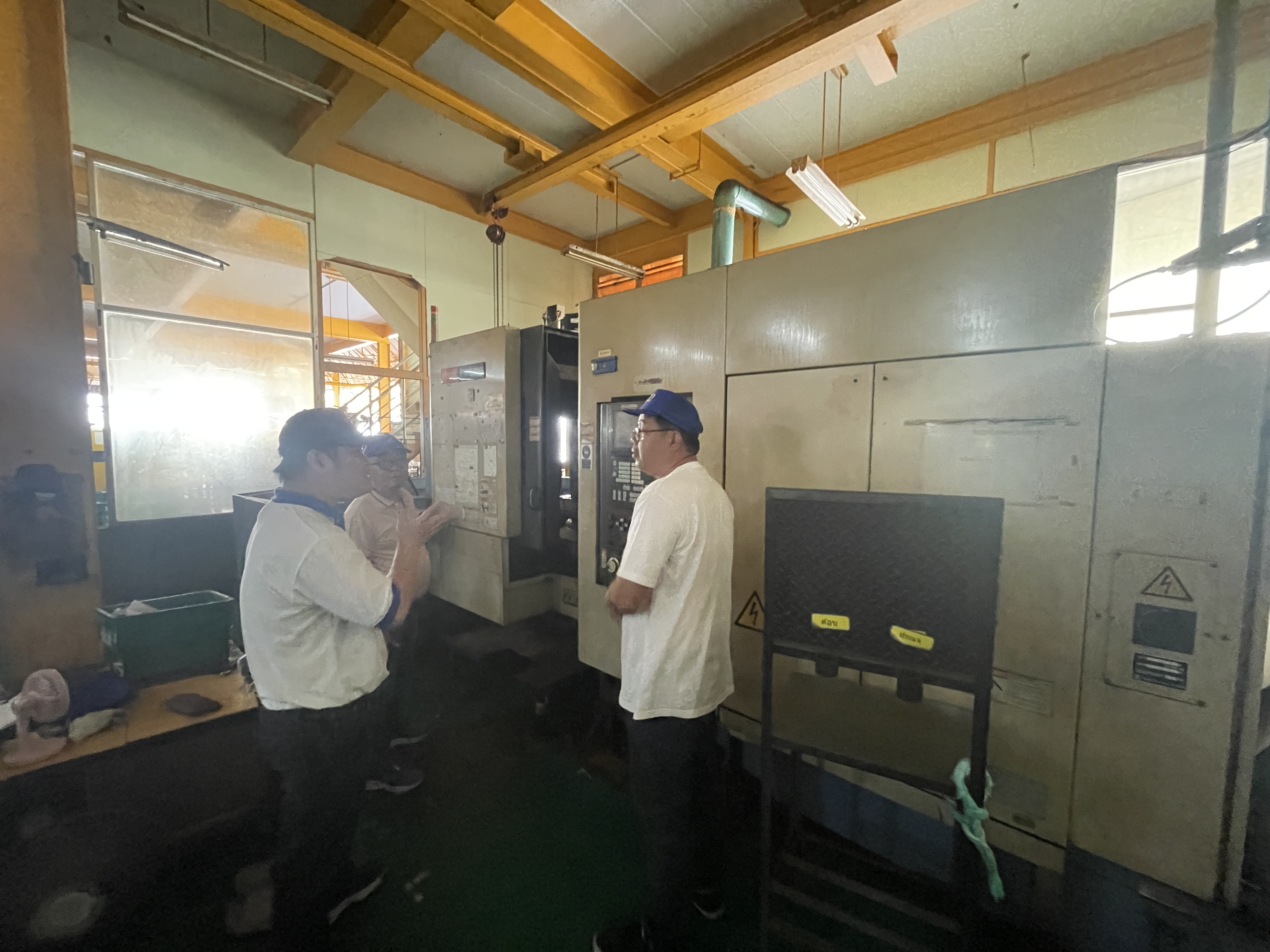

Used, in good operating condition. The machine is still installed at its current location and can be inspected on-site upon request.
