2007 SEYI SN2-110 C Frame Crank Press – Used – Taiwan

Listed by seller-name

📷 1 / 6

Bid Type:—

Quantity:1

TaxesTo be added at payment

Seller's Terms & Conditions

Core Specifications

The SEYI SN2-110 is a C Frame Crank Press designed for precision metal forming and stamping in metalworking applications. With a 110-ton capacity, 110mm stroke length, and adjustable stroke speed of 45-90 strokes per minute (SPM), this press is equipped for high-performance tasks. Manufactured by SEYI in 2007 (serial number EW-D110-447), this unit is in used condition, and is suitable for industries requiring robust and reliable pressing operations.

Specifications

Product Type: C Frame Crank Press
Manufacturer: SEYI
Model: SN2-110

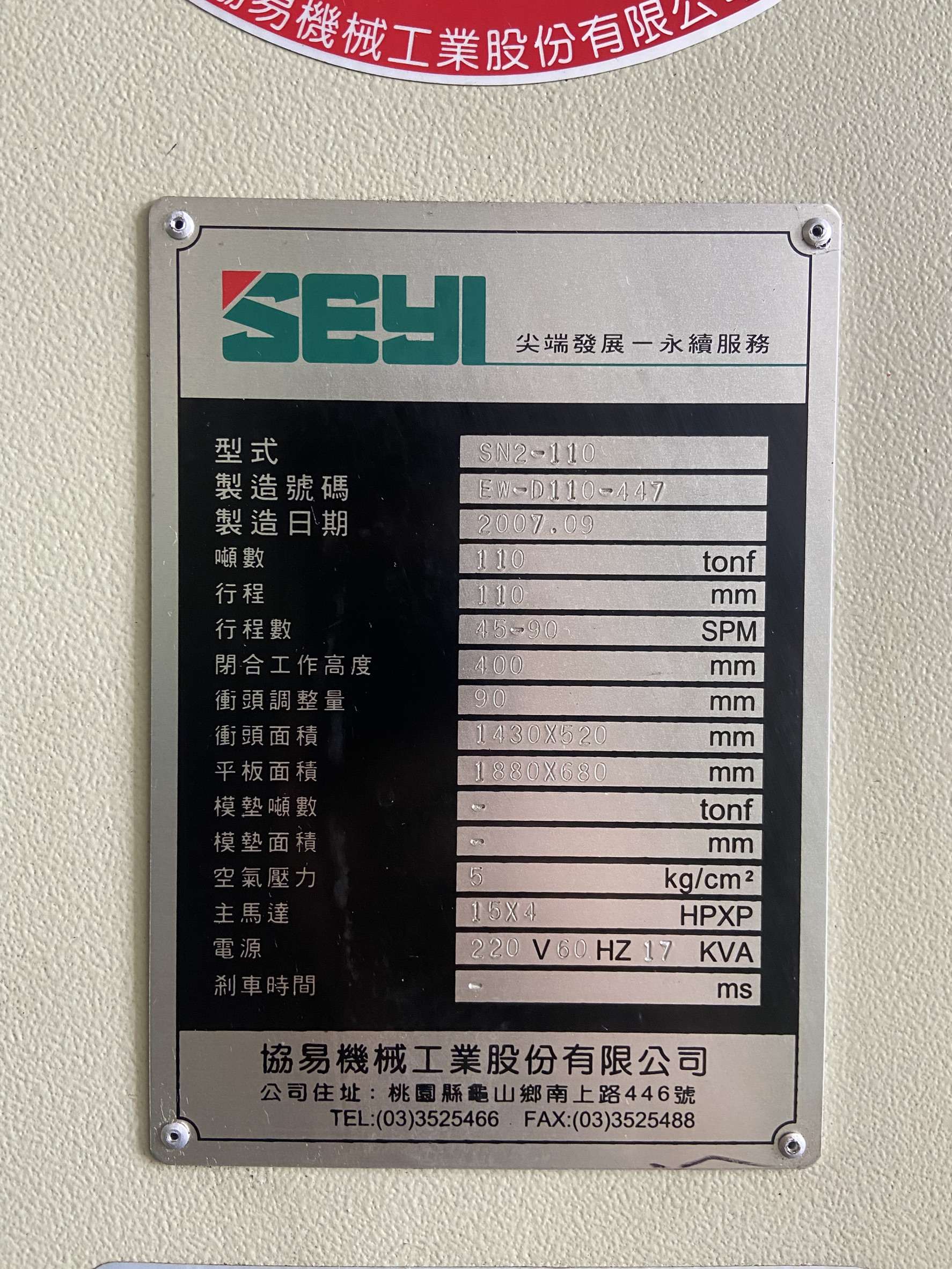

Serial Number: EW-D110-447
Manufacturing Date: 2007.09
Condition: Used
Tonnage/Capacity: 110 tonf
Stroke Length: 110 mm
Stroke Speed (SPM): 45-90 SPM
Shut Height (Closed Working Height): 400 mm
Slide Adjustment Amount: 90 mm
Slide Area: 1430 x 520 mm
Bolster Area: 1880 x 680 mm
Air Pressure: 5 kg/cm²
Main Motor: 15 x 4 HPXP
Power Supply: 220 V, 60 Hz, 17 KVA
Origin: Taiwan
Equipment Category: Metalworking Machinery
Industries Used: Metalworking, stamping, manufacturing
Location: Taiwan
