Lot #1633Working

2003 Mazak VARIAXIS 500-5X 5-Axis Twin Pallet VMC – Used – Nashik, MH, India

Listed by seller-name

📷 1 / 10

Bid Type:—

Quantity:1

TaxesTo be added at payment

Seller's Terms & Conditions

Core Specifications

The 2003 Mazak VARIAXIS 500-5X is a 5-axis twin pallet vertical machining center designed for precision and versatile machining operations. Manufactured by Mazak, this model features XYZ travels of 510 x 510 x 460 mm, a pallet size of 500 x 400 mm, and supports a maximum workpiece size of Ø500 x 405 mm high with a weight capacity of 300 kg. It includes A-axis rotation from -120 to +30 degrees and C-axis rotation at 0.001-degree increments. The machine is equipped with a CAT40 spindle offering speeds up to 12,000 RPM, powered by a 30 HP spindle motor. Controlled by a Mazatrol 640M 5X PC-Fusion CNC system, it ensures high accuracy and efficiency. The machine includes a 40-tool ATC (CAT40) and twin pallet system for continuous operation. In used condition, it is ideal for complex part manufacturing in high-demand industrial environments. Located in Nashik, Maharashtra, India. Specifications:

Machine Type: 5-Axis Twin Pallet Vertical Machining Center (VMC)
Manufacturer: Mazak
Model: VARIAXIS 500-5X
Manufacture Year: 2003
Capacity: 510 x 510 x 460 mm

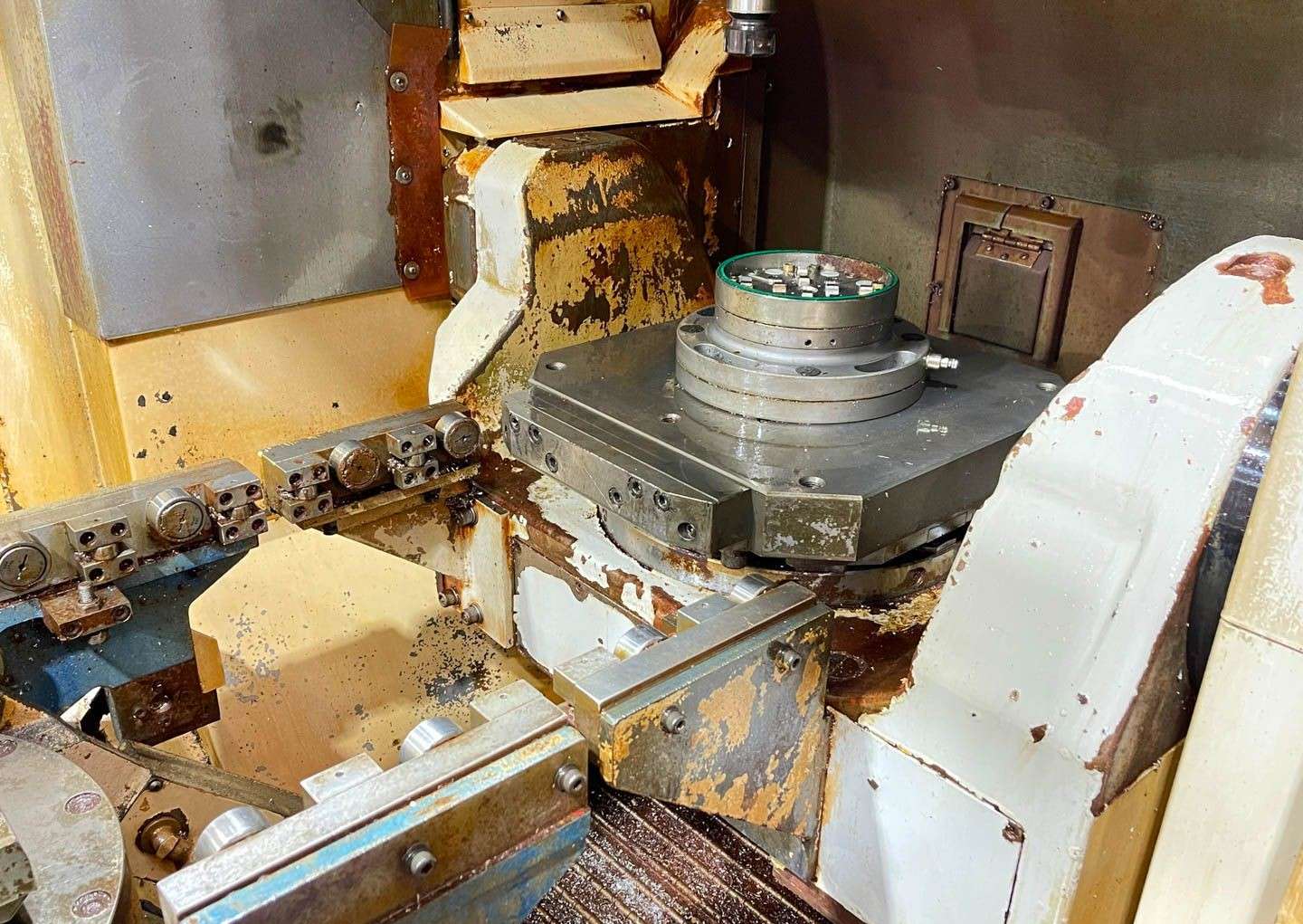

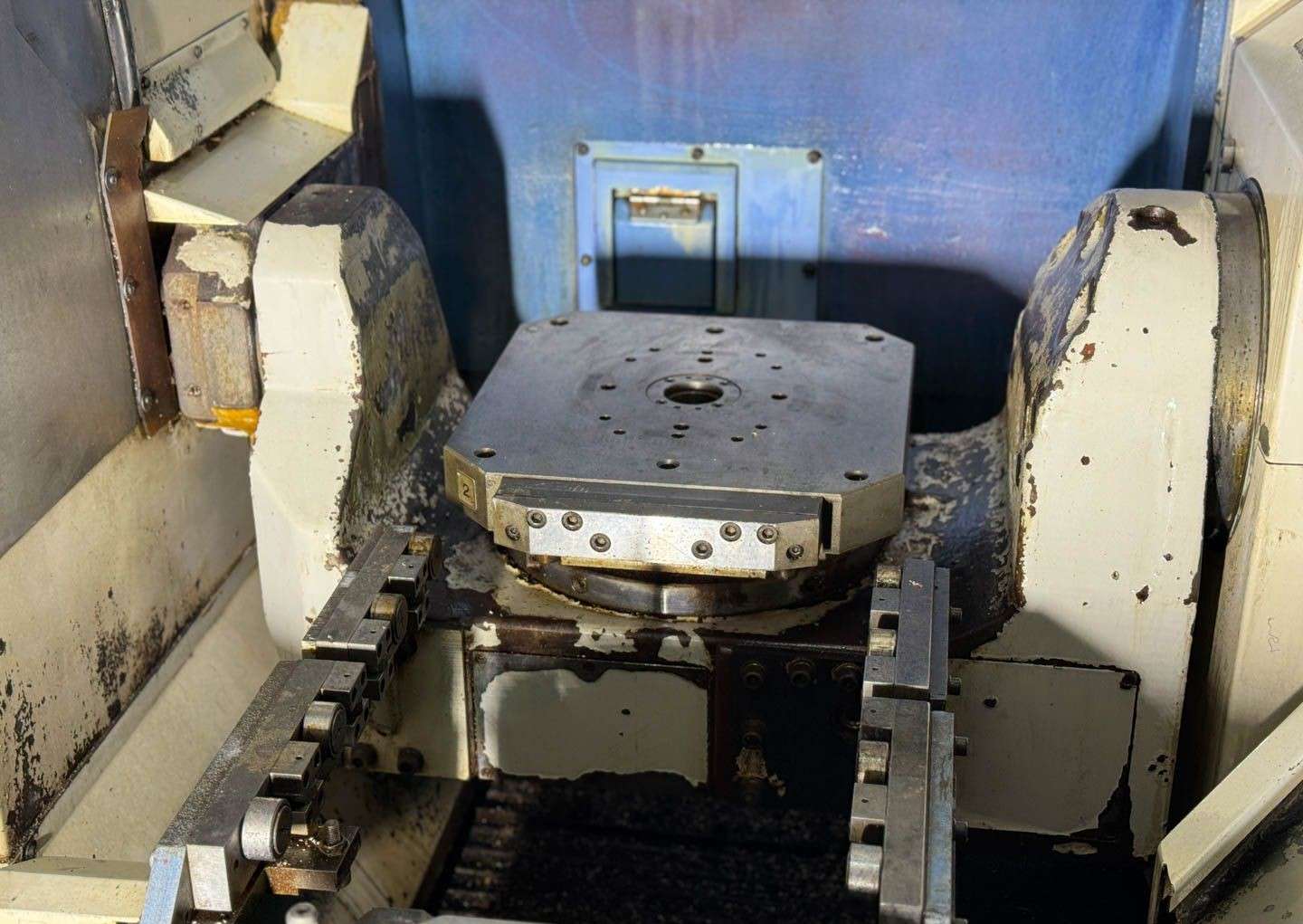

Pallet Size: 500 x 400 mm

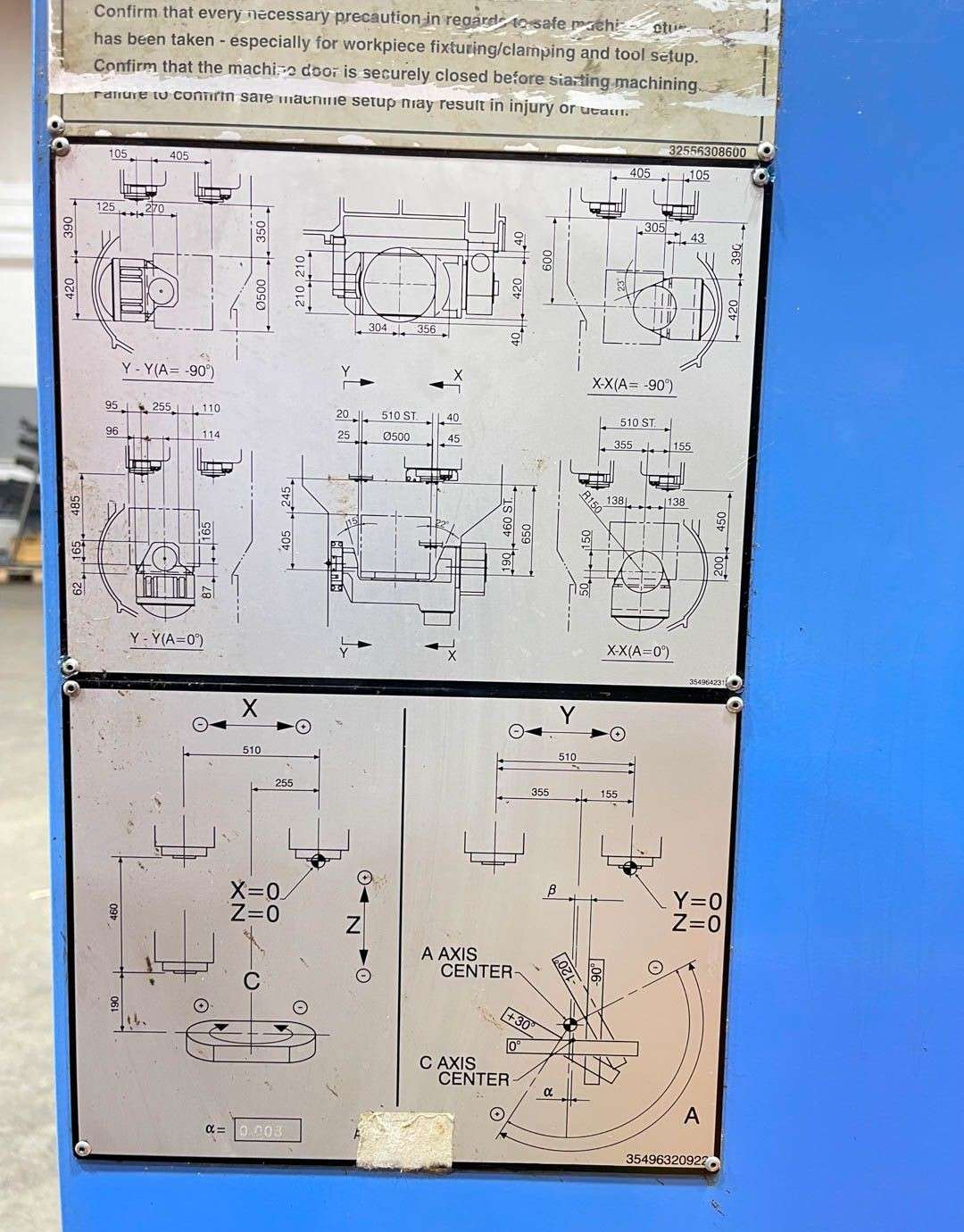

Travels (X/Y/Z): 510 x 510 x 460 mm
A Axis: -120 / +30 Deg
C Axis: 0.001 Deg

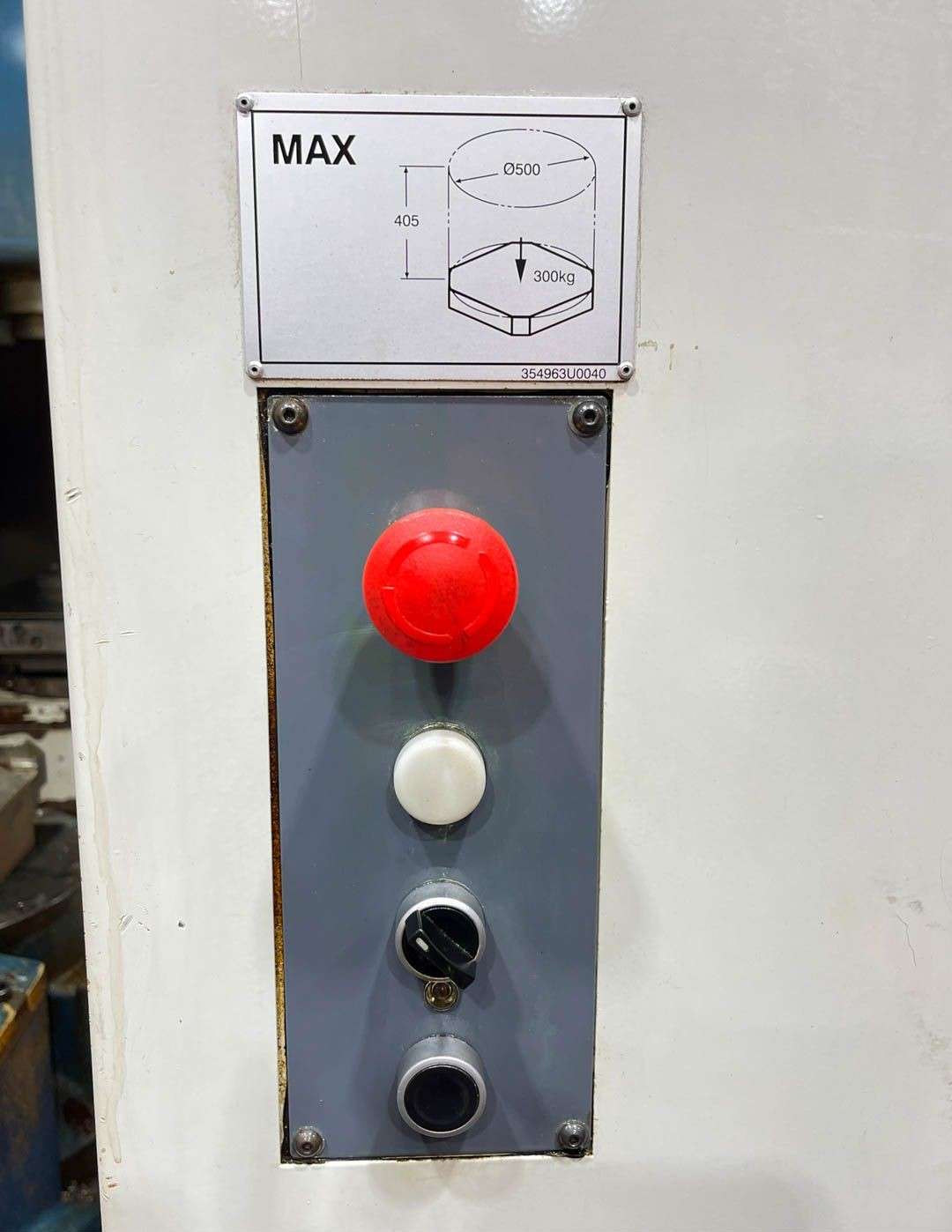

Max Workpiece Size: Ø500 x 405 mm high
Max Workpiece Weight: 300 kg

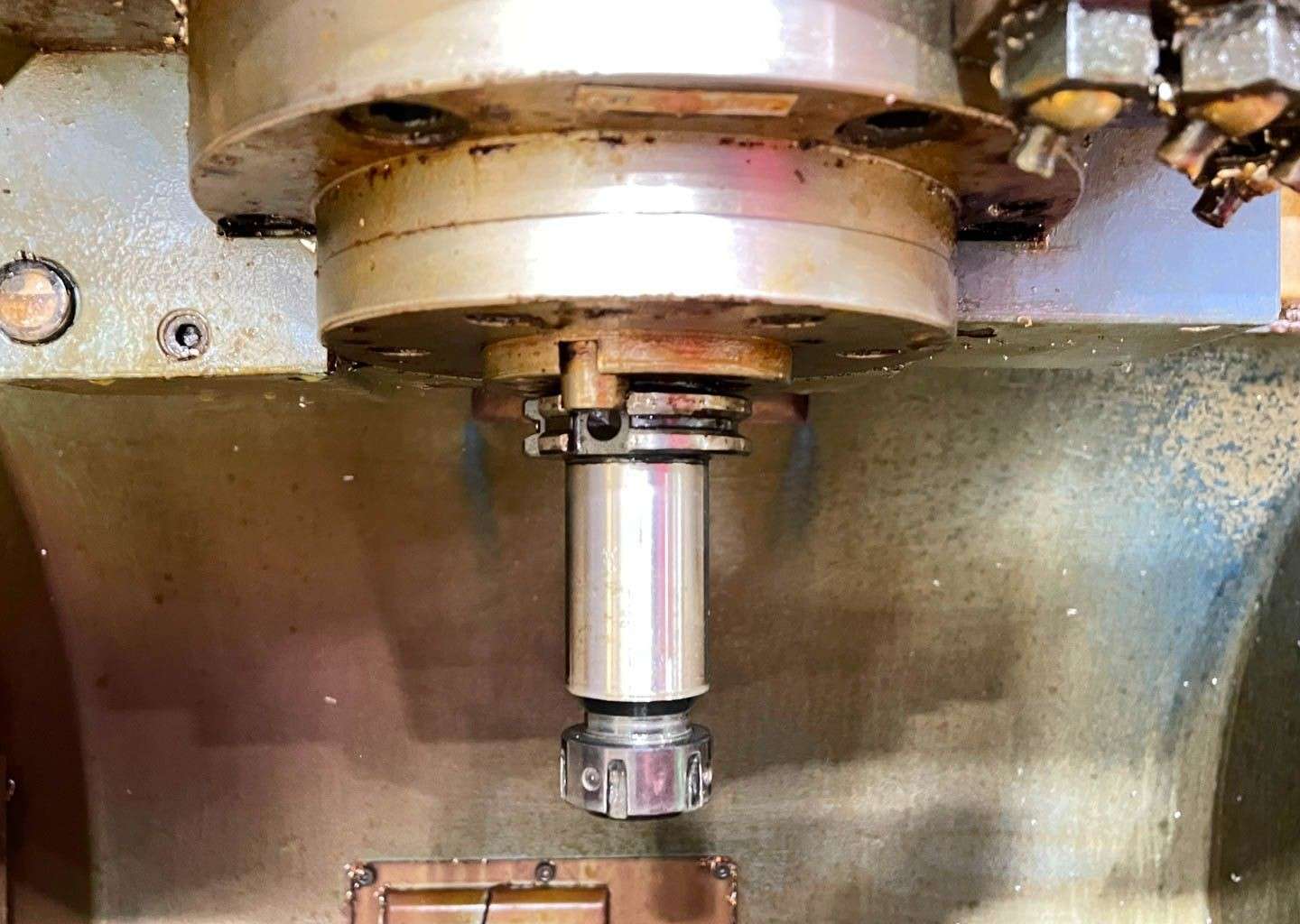

Spindle Taper: CAT40
Spindle Speeds: 12,000 RPM
Spindle Motor Power: 30 HP

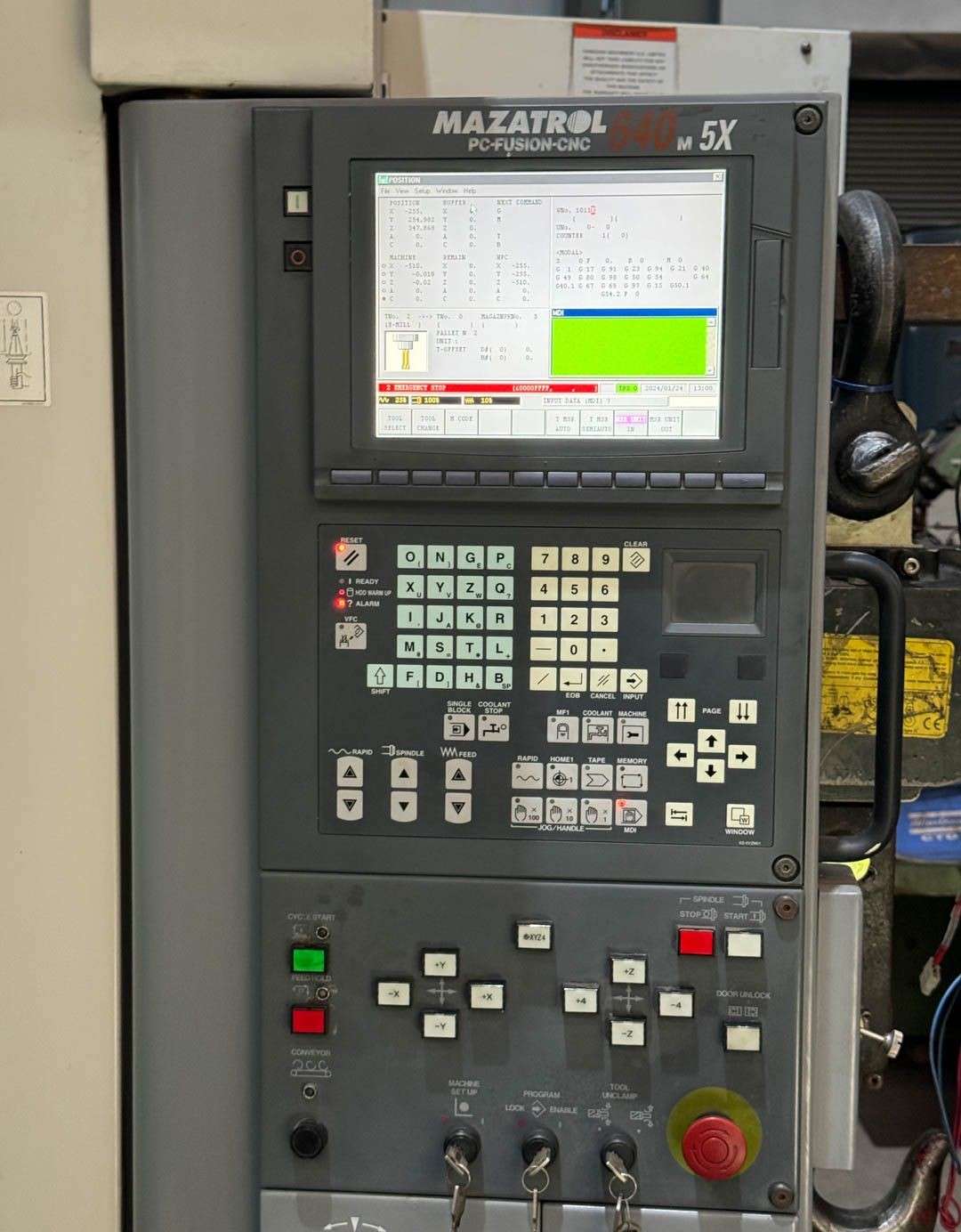

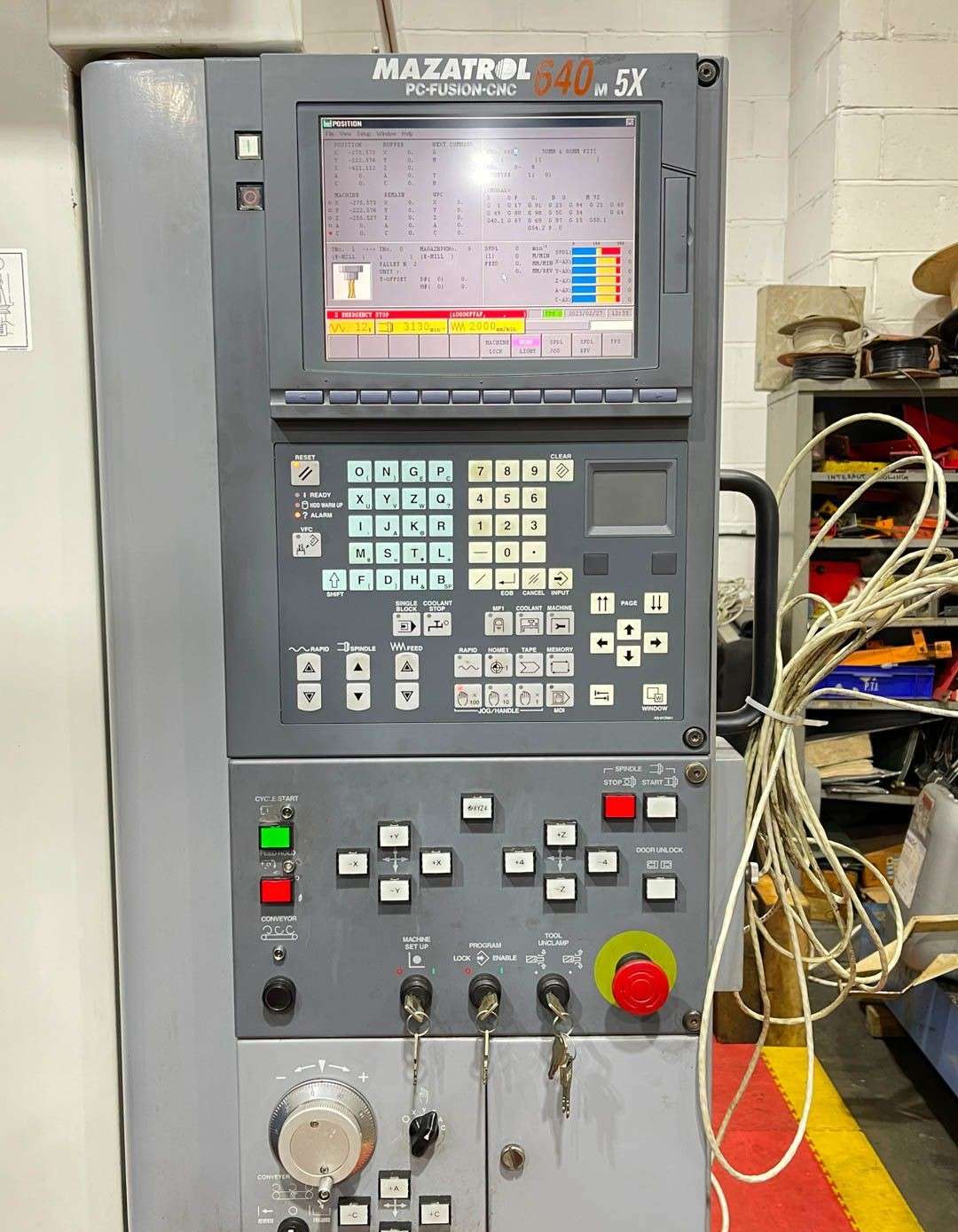

Control: Mazatrol 640M 5X PC-Fusion CNC

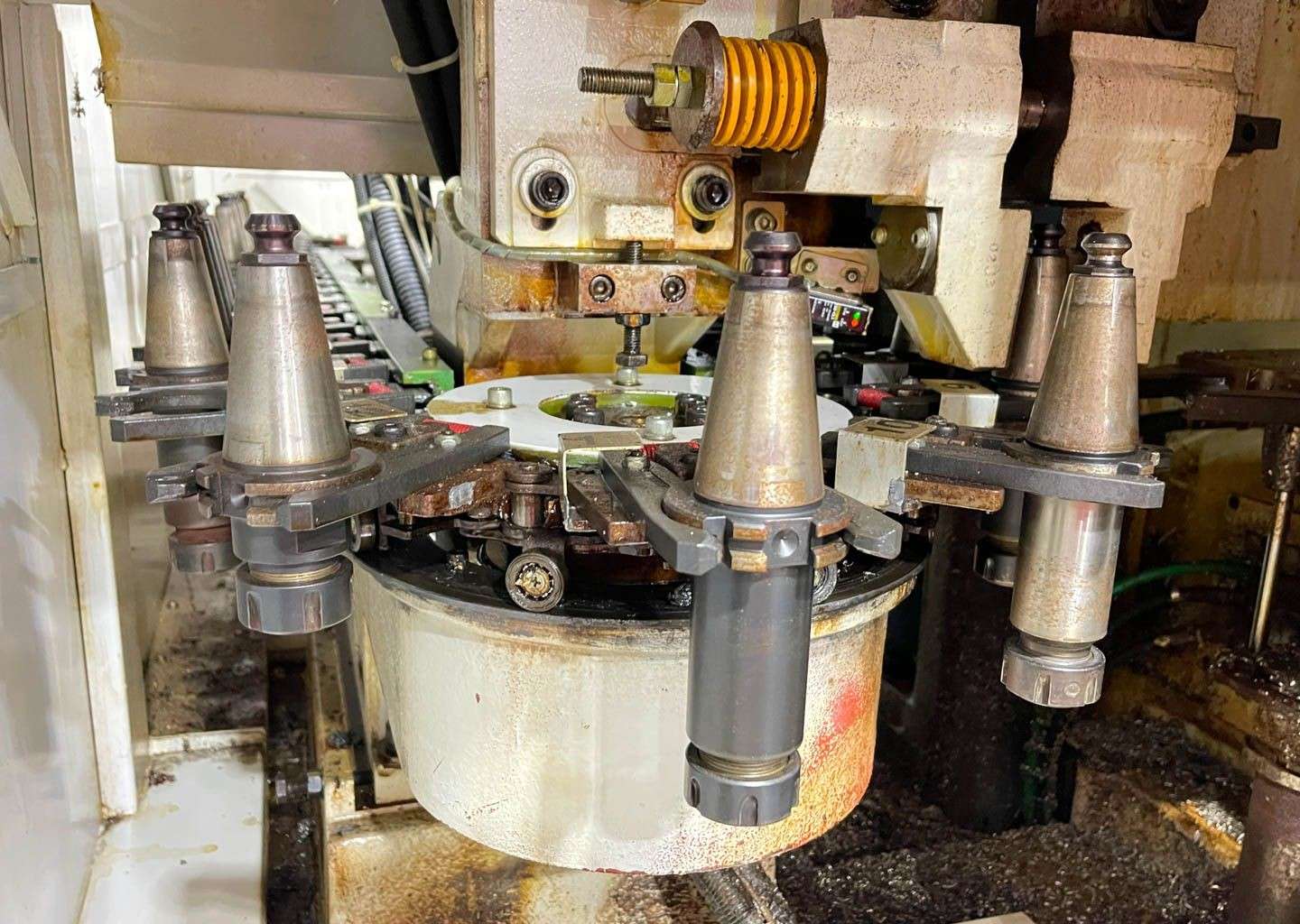

ATC Tool Change Capacity: 40 tools (CAT40)
Additional Features: Twin pallet
Condition: Used
Location: Nashik, MH, India

Applications:

Precision 5-axis milling and drilling
Complex part manufacturing
High-demand industrial machining

Condition

Working
