Lot #1275Working

Gentiger GT-1614V Vertical Machining

Listed by seller-name

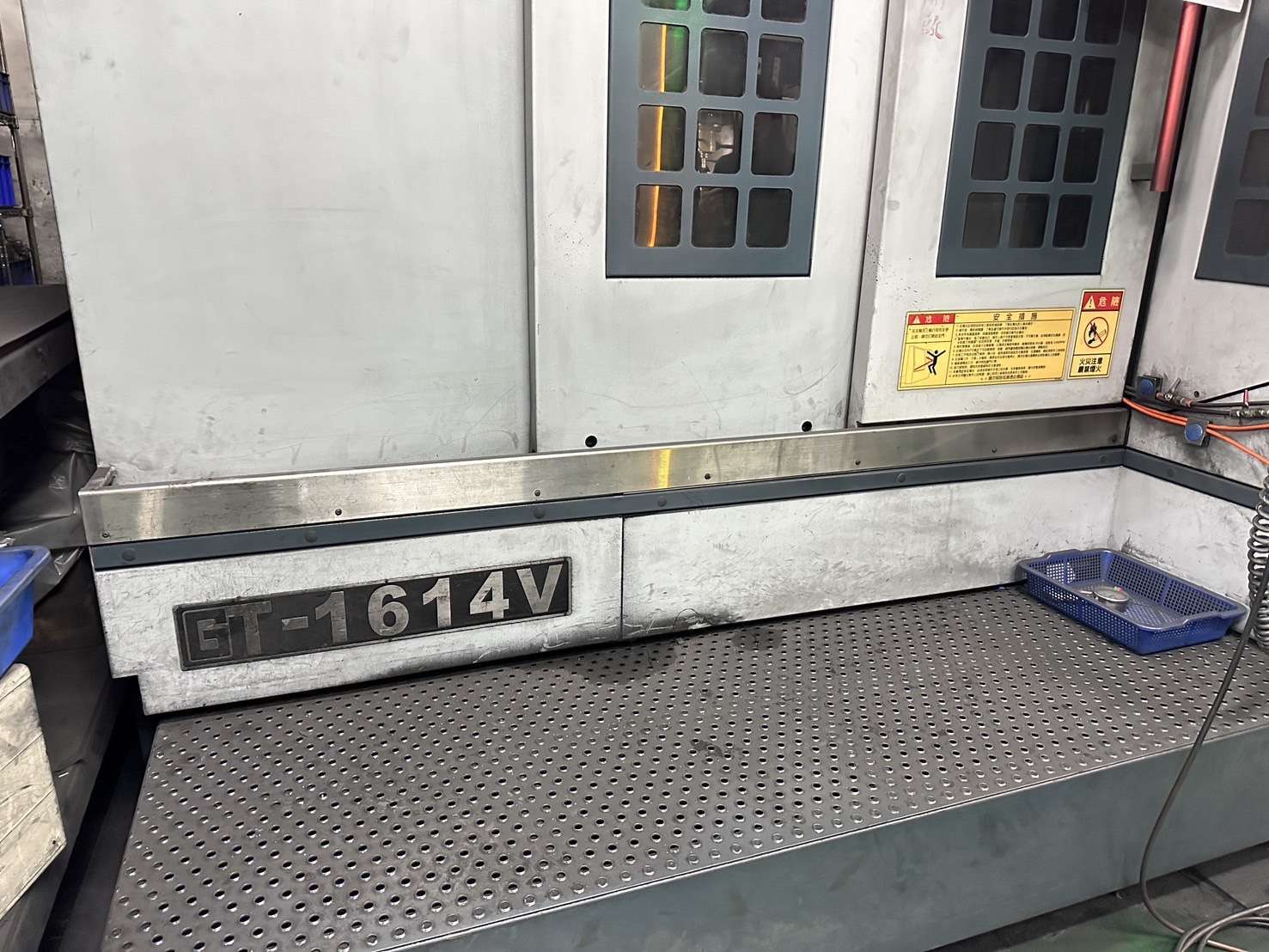

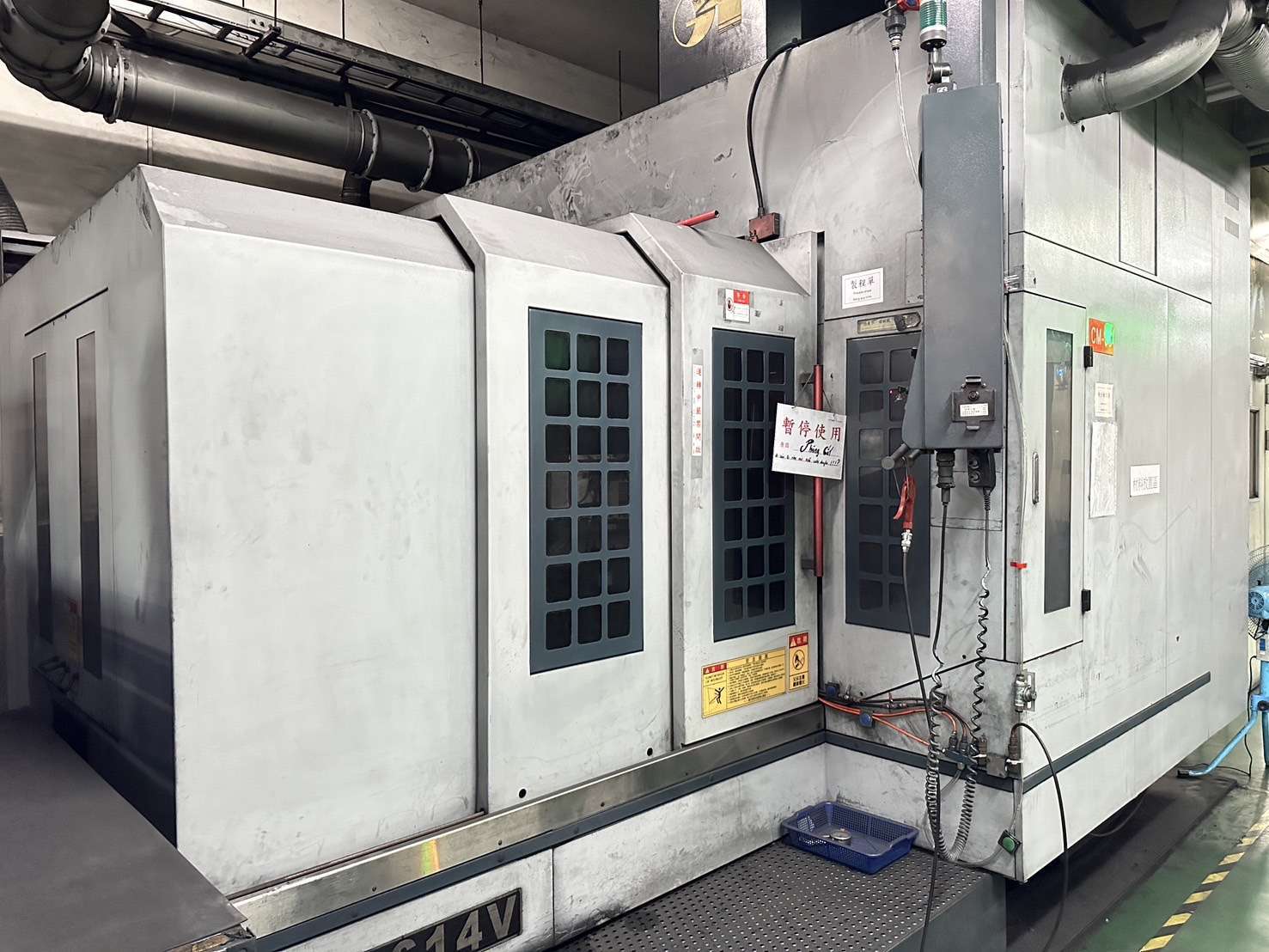

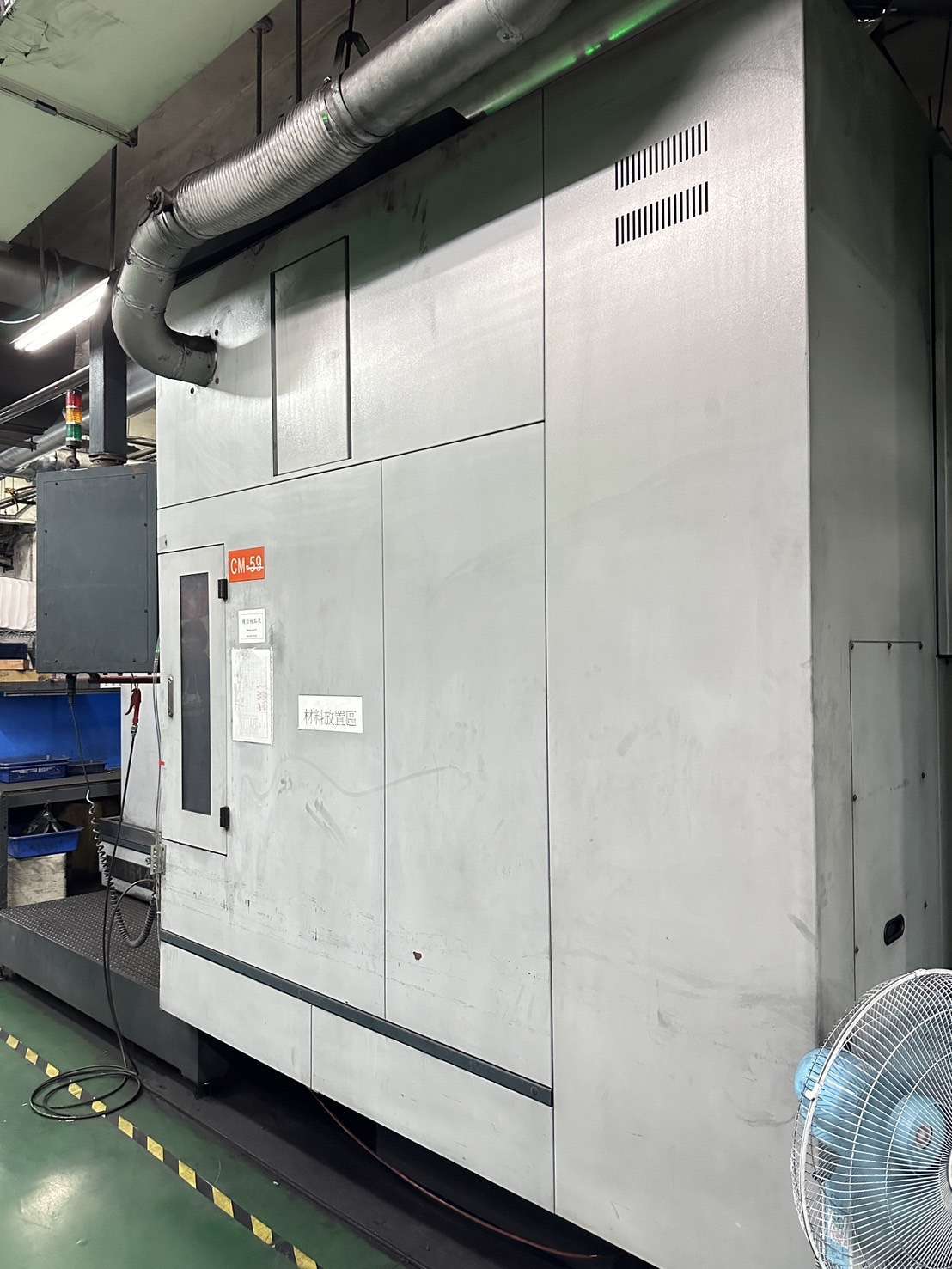

Gentiger GT-1614V Vertical Machining
📷 1 / 4
Bid Type:—
Quantity:1
TaxesTo be added at payment
Seller's Terms & Conditions

Core Specifications

  • The Gentiger GT-1614V is a high-speed 3-axis vertical machining center designed for precision mold and die machining. Its T-shaped machine structure ensures superior rigidity, with the column width matching the base, and the table independently installed on the base for full support throughout its stroke.
  • BRAND: Gentiger
  • Model: GT-1614V
  • Axes: 3
  • Spindle Speed: 15,000
  • X(mm)/Y(mm)/Z(mm): 1200/1200/500
  • Accuracy: 0.01mm
  • Quantity: 1
  • Status: Normal
  • Machine Installation Date: 18th. Jan. 2013
  • Specifications : Table Area: 1,500 mm x 1,600 mm
  • Spindle Motor Power: 22 kW
  • Tool Taper: BT/BBT-50
  • Tool Magazine Capacity: 20 tools
  • Maximum Table Load: 5,000 kg
  • Machine Dimensions (W x D x H): ~4,285 mm x 4,665 mm x 3,830 mm
  • Machine Weight: ~25,200 kg
  • Item No : SOTW0267

Condition

Working

Category

Machining Centers
